New Compact and Low Cost Standalone UWB Module with Antenna Integration

  • The UWB module is based on NXP’s SR150 or SR040 Ultra Wideband (UWB) transceiver IC.
  • The UWB SR150 Module integrates all RF circuitry, power management and clock circuitry in one module compliant to IEEE 802.15.4 HRP UWB PHY. It can be used for 2-way measurement with a measurement accuracy of 10cm, for angle of arrival measurement with an accuracy of +/-5 degree and for a TDOA measurement with an accuracy of 0.3ns. It can be also used for data transmission with a data rate of up to 7.8Mbits/s.
  • The UWB SR040 Module is a fully integrated single chip Impulse Radio Ultra-Wideband (IR-UWB) low energy transceiver IC compliant to IEEE 802.15.4/4z HRP UWB PHY.
  • It is designed for Ranging applications in an IOT environment. In can be used for 2-way ranging achieving an accuracy of ±10cm in non-line of sight.

Competitiveness

  • Dedicated antenna design and manufacturing service as well as standard UWB antenna solution for module application
  • Customer support for firmware optimization for UWB TWR or AoA
  • Customized support for the module with CPU, antenna, BLE and other functions
  • Technical support for certifications such as FCC, CE, RE-D

PRODUCT : ASMOP1CO0R1

SPEC

  • Size : 13mm x 17mm x 2.7mm
  • UWB IC : SR040
  • Antenna : External antenna
  • Interface : SPI

PRODUCT : ASMOP1CO0A1

SPEC

  • Size : 13mm x 18mm x 2.7mm
  • UWB IC : SR040
  • Antenna : Internal antenna
  • Interface : SPI

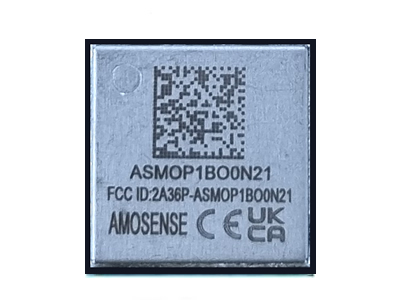

PRODUCT : ASMOP1BO0N1

SPEC

  • Size : 13mm x 13mm x 2.7mm
  • UWB IC : SR150
  • Antenna : External antenna
  • Interface : SPI

RF Module

Products : AiP

Product Description (Functions)

A 5G antenna that implements beam-steering with a 4 x 4 antenna element and 8 x 8 antenna element by using a chipset with a phase shifter and a VGA (variable gain amplifier)

Key Competitiveness (Features)

  • Low dielectric and low loss ceramic
  • LTCC manufacturing technology for easy lamination
  • Built-in RF power divider

Application

5G Base station / Repeater / CPE and laptop communication module, etc

Products : Passive Components

Product Description (Functions)

– Doherty Combiner: Power combiner for 3.5 GHz
– LPF: sub-6GHz band low pass filter
– BPF: 28GHz band Bandpass Filter

Key Competitiveness (Features)

  • Low loss, low dielectric material
  • Compact size with LTCC

Application

5G sub-6GHz, 28GHz frequency band repeater

Products : RADAR Antenna

Product Description (Functions)

– Tool-base polymer layer concept
– Air-filled waveguide Antenna Structure
– Low loss & Wide Bandwidth

Key Competitiveness (Features)

  • Low weight
  • low loss
  • broadband antenna

Application

Automotive RADAR
